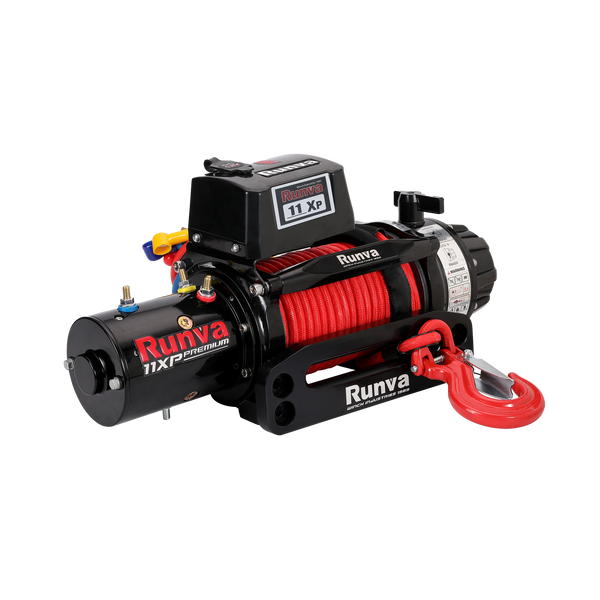

RUNVA Winch 11XP Premium Red Edition 12V With Synthetic Rope & Handheld Remote

SKU: 11XPPREMIUM12VDREDWH

$1,250.00

Tax includedShipping calculated at checkout

Available Now!

12 Month Warranty

Flag of australia 01

Austrilan Owned & Operated

The Important Bits:

  • LATEST MODEL WITH DOUBLE BRAID SYNTHETIC ROPE
  • LATEST 3-STAGE CLUTCH WITH SUPER EASY FREESPOOL
  • INCLUDES IN-CAB ROCKER SWITCH + WIRELESS + HANDHELD REMOTE
  • 11,000LB LINE PULL CAPACITY
  • LATEST RUNVA ROPE-LOCK TO SECURE YOUR ROPE TO THE DRUM
  • IP67 INGRESS PROTECTED
  • FITS 99% OF ALL 4X4 WINCH BARS AVAILABLE TODAY
  • RATCHET BRAKE IN GEARBOX
  • THIS MODEL REQUIRES A DIFFERENT AIR CLUTCH TO THE STANDARD PREMIUM AIR CLUTCH - SKU: AIRCLUTCH3S
  • INCLUDES BONUS ACCESSORIES!
  • IF YOU WANT THE BEST - LOOK NO FURTHER



The Nitty Gritty:

THE WINCH THAT HAS IT ALL JUST GOT EVEN BETTER.
The latest Runva 11XP Premium RED edition really does have it all. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest recoveries. This model also features our very latest clutch system. Now you can pull the rope out by hand without any resistance making recoveries quicker and hassle free! Whether you are driving a Hilux, Ranger, Landcruiser, or anything in between, this winch will get you out of trouble.

Runva have also fitted this model with their latest double braid rope for extra durability, and cleverly secured it to the drum with their 'Runva Rope Lock'.

This model is also proudly featured on 4WD 24/7. If you have seen the insane winching they do with the 11XP Premium in order to get out of the tracks they tackle, you know you are buying a quality winch that you can be confident in owning and using. After all of the winching they have done over the past couple of years, including pulling 2 dead vehicles tied together up a track, they have not had a single Runva fail on them.

This model has all of their Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is their most advanced Ratchet system and is located in the gearbox. It is super efficient able to hold without fail when you stop winching. (The same brake is featured in Runva's vertical lifting winch). Unlike the other traditional brake systems that use brake pads, this will not wear out.


What's In The Box?!

- All necessary wiring
- Control Module & Cables
- Wireless Handheld Control
- In-Cab Control Box Rocker Switch
- Remote Extension Lead
- Kill Switch (Isolation Switch)
- Mounting Brackets
- Front Facia Plate
- Large Recovery Hook

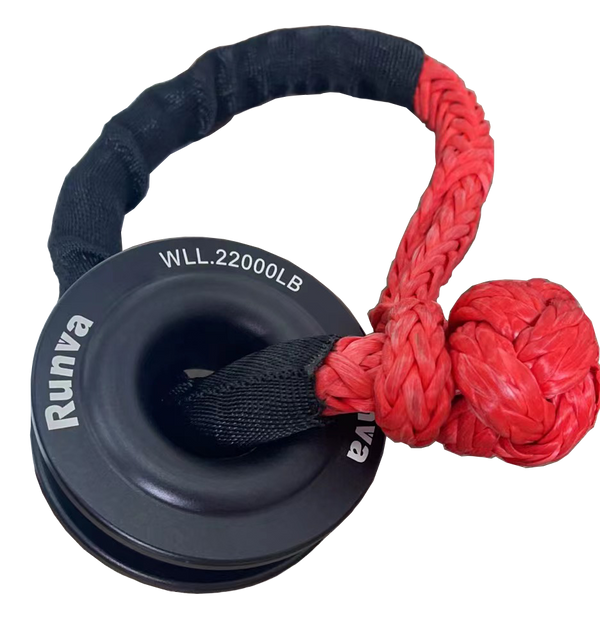

- Recovery Ring & Soft Shackle Combo
- Mounting Bolts
- Stubbie Holder x2

Specifications:

RATED LINE PULL11,000LB (4,990KG)
MOTOR(12V) 5.0KW/6.7HP; (24V) 6.0KW/8.2HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO228:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE (DOUBLE BRAID)
CABLE SIZE10MM X 25M (22,500LB RATING)
DRUM SIZE63MM X 217MM
MOUNTING BOLT PATTERN254MM X 114.3MM

OVERALL DIMENSIONS574MM X 160MM X 196MM
REMOTE CONTROLIN-CAB ROCKER + WIRELESS + HANDHELD
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHBLACK POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU 11XPPREMIUM12VDREDWH
SHIPPING WEIGHT 42.00KG
SHIPPING WIDTH 0.330M
SHIPPING HEIGHT 0.330M
SHIPPING LENGTH 0.630M
