*Disclaimer - Turbos are made to order. Please allow 2 week lead time*
This CCT Turbo G30-770 Is a Universal Fit Turbo And Requires Vehicle Modification For Fitting.
Features
- Billet 8 Blade Point Milled Wheel
- Opposing water ports
- German Dual Ceramic Ball Bearing
- Anti-Surge Compressor Housing
- Speed Sensor Port
- V-Band Exhaust Housing Flanges
- External Gate Type Rear Housing
SPECS
| Compressor | Turbine |
| Inducer - 54mm | Inducer - 60mm |
| Exducer - 67mm | Exducer - 55mm |
| Inlet - 3 Inch | Inlet - 2.5 Inch V-Band |
| Outlet - 2 Inch | Outlet - 3 Inch V-Band |
| 0.70 A/R | 0.83 A/R |
Cartridge Assembly:
- German Ceramic Dual Ball Bearings
- Ultra Seal Oil Rings
- Nitrile O-Rings
- Oil & Water Cooled

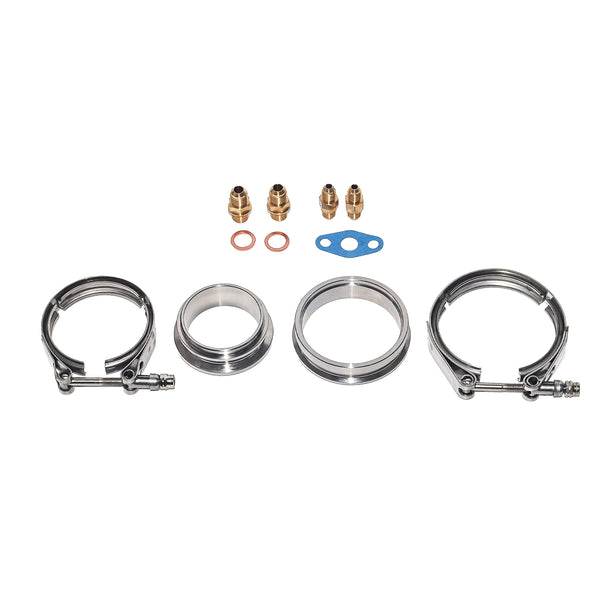

Gaskets & Fittings Included:
- Oil Feed Gasket
- Oil Restrictors x2 (Only Use If Required)
- V-Band Clamp 2.5 Inch
- V-Band Weld-On Fitting 2.5 Inch
- V-Band Clamp 3.0 Inch
- V-Band Weld-On Fitting 3.0 Inch
Ceramic Ball Bearing
Ceramic Ball Bearings Are Used In Our Cartridges As They Don’t Suffer With Heat As a Normal Stainless Ball Bearing Would, There Also Low Friction, To Ensure Smooth Rotations And a Quicker Spooling Turbo.
Point Mill Compressor Wheels
Point Milling Is The Latest In Comp Wheel Technology, Point Milling Takes Twice The Time Of a Normal Flank Mill, Point Milling Makes The Compressor Wheel Lighter And The Design Makes The Compressor Wheel 2% More Efficient Over The Standard Flank Mill.
Why buy a CCT Turbocharger?
CCT turbochargers are built, balanced and calibrated using the latest technology to not only meet and exceed OEM specifications but to ensure you are getting one of the best aftermarket turbochargers on the market.
Because they believe in their products, and constantly strive to provide the best customer service. They offer a 12 months unlimited KM hassle free warranty.
