*Disclaimer - Turbos are made to order. Please allow 2 week lead time*

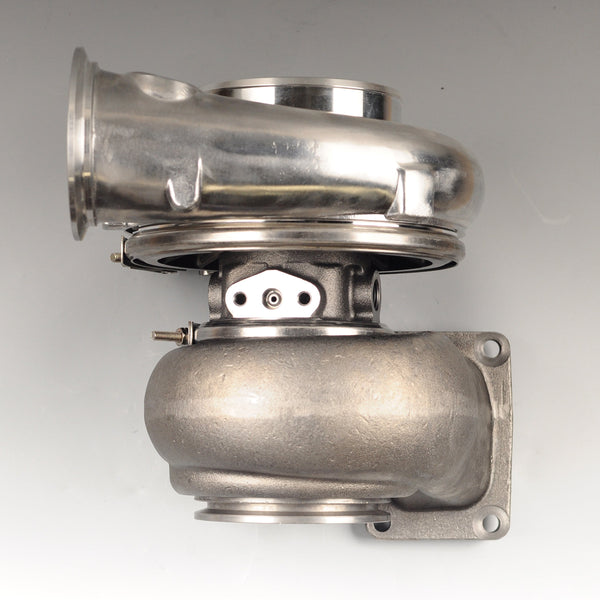

This CCT Turbo GT4508R Is a Universal Fit Turbo And May Require Vehicle Modification For Fitting.
Features
- Billet 11 Blade Compressor Wheel
- Opposing water ports
- German Dual Ceramic Ball Bearing
- Anti-Surge Compressor Housing
- Speed Sensor Port
- T4 Manifold Flange
- V-Band Exhaust Flange
- External Gate Type Rear Housing
- High Temp Inconel Turbine Wheel
SPECS
| Compressor | Turbine |
| Inducer - 80mm | Inducer - 89mm |
| Exducer - 108mm | Exducer - 77mm |
| Inlet - 5.0 Inch | Inlet - T6 |
| Outlet - 4.0 Inch | Outlet - 4.5 Inch V-Band |
| 0.69 A/R | 1.26 A/R |
Cartridge Assembly:
- German Ceramic Dual Ball Bearings
- Ultra Seal Oil Rings
- Nitrile O-Rings
- Balanced To 150,000 RPM
- Oil & Water Cooled
Gaskets & Fittings Included:
- T6 Gasket
- Oil Feed Gasket
- Oil Drain Gasket
- V-Band Clamp 4.5 Inch
- V-Band Weld-on Fitting 4.5 Inch
Ceramic Ball Bearing
Ceramic Ball Bearings Are Used In Our Cartridges As They Don’t Suffer With Heat As a Normal Stainless Ball Bearing Would, There Also Low Friction, To Ensure Smooth Rotations And a Quicker Spooling Turbo.
Why buy a CCT Turbocharger?
CCT turbochargers are built, balanced and calibrated using the latest technology to not only meet and exceed OEM specifications but to ensure you are getting one of the best aftermarket turbochargers on the market.
Because they believe in their products, and constantly strive to provide the best customer service. They offer a 12 months unlimited KM hassle free warranty.
