Features
- Designed to be a responsive bolt-on upgrade
- Requires no modifications to use
- All turbos are balanced, flow tested and oil leak tested
- Made in Melbourne
- 24 Months Warranty

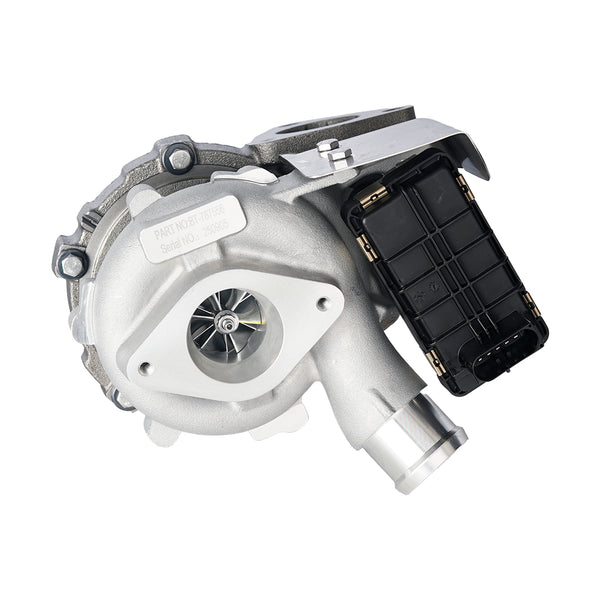

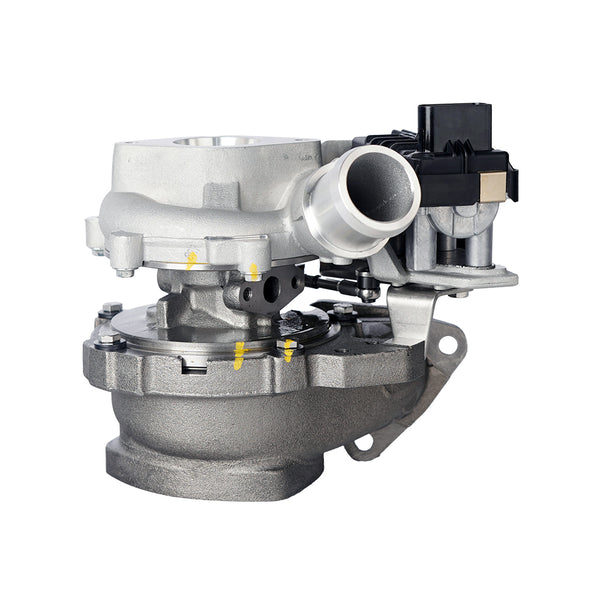

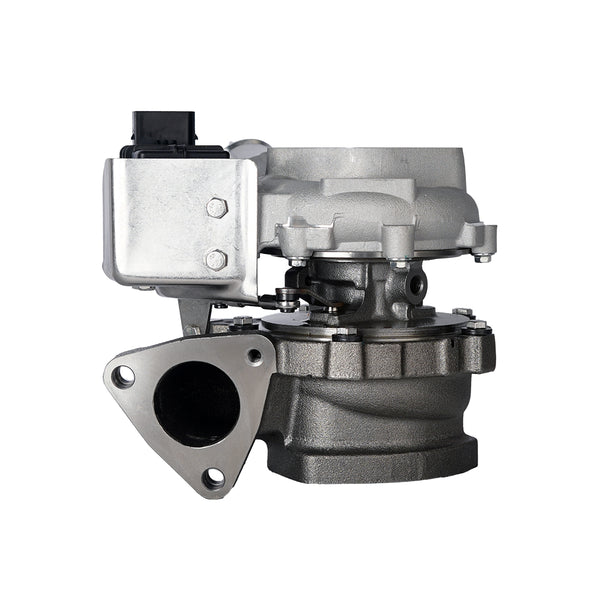

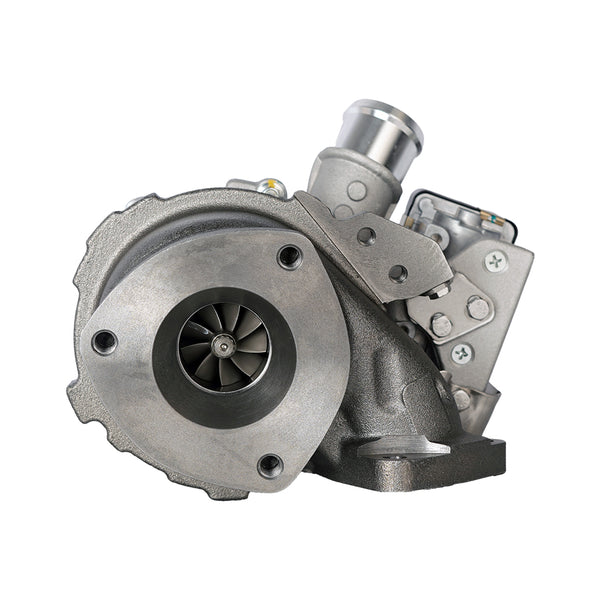

High-Flow Stage 1 Billet Turbo charger for Ford Ranger PX 2.2L P4AT, Ford Transit 2.2L P4AT & Mazda BT-50 UP 2.2L P4AT Duratorq engine. Model Range 2011-2015.
Brand: CCT Turbo
Model: GTB1749V
Part No: 854800-5001 / 854800-5001W / 854800-5001S / 854800-0001 / 787556-5016 / 787556-5016S / 787556-0016 / 787556-5017 / 787556-0017 / 787556-5017S / 787556-5022S / 787556-5022 / 787556-0022
OEM No: BK3Q6K682PC / BK3Q6K682CB / BK3Q6K682CC / BK3Q6K682DA / BK3Z6K682T / BK3Q-6K682-PC / BK3Q-6K682-CB / BK3Q-6K682-CC / BK3Q-6K682-DA / BK3Z-6K682-T / U20313700A / U20313700 / 1D0113700 / U203-13-700A / U203-13-700 / 1D01-13-700
Vehicle:
- Ford Transit 2.2L MY11-14
- Ford Ranger (PX1) 2.2L MY11-15
- Mazda BT-50 (UP) 2.2L MY11-15
Actuator: Optional OEM Electronic Actuator (Hella Brand)
Gaskets: This turbo comes with a free gasket kit.
Warranty: 24 Months, Unlimited Kilometre
Delivery: Free post to Aus wide, normally takes 2-4 days to major cities.
All CCT Stage One Turbochargers are assembled, balanced and air flow calibrated in house. Using slim hub technology and extended base tip design will increase the flow rate of the turbo up to 15%. The billet wheel is much lighter and stronger than a regular cast wheel, meaning it will spool up at a faster rate and also reduce pressure on the thrust bearing as having less weight will reduce the inertia thrust front to back.
