The Run Down:

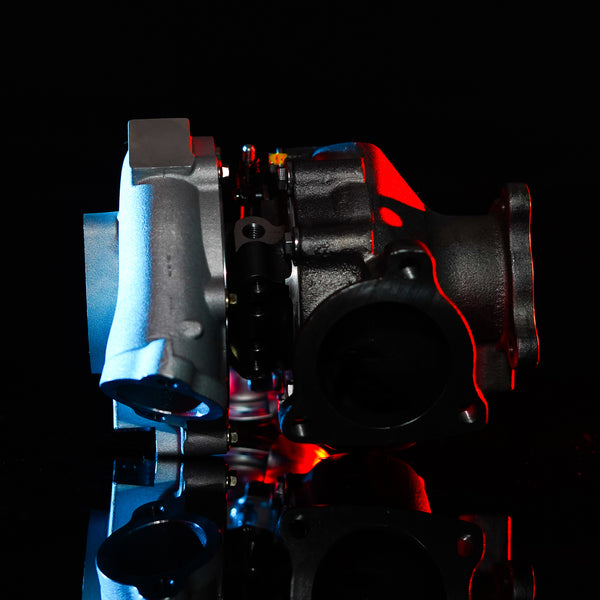

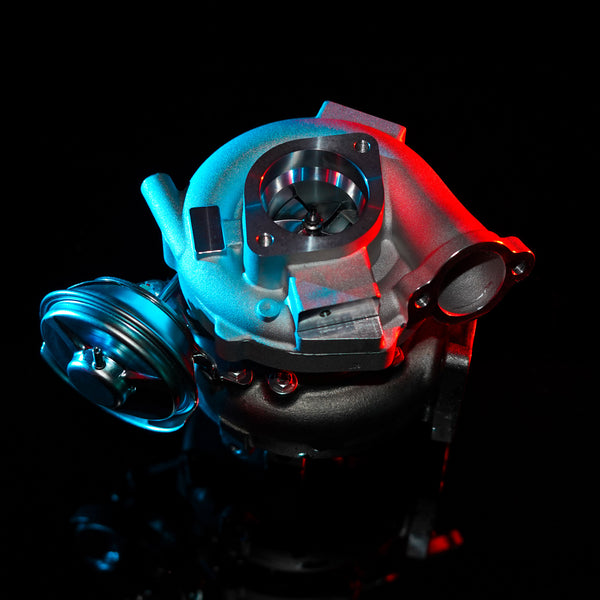

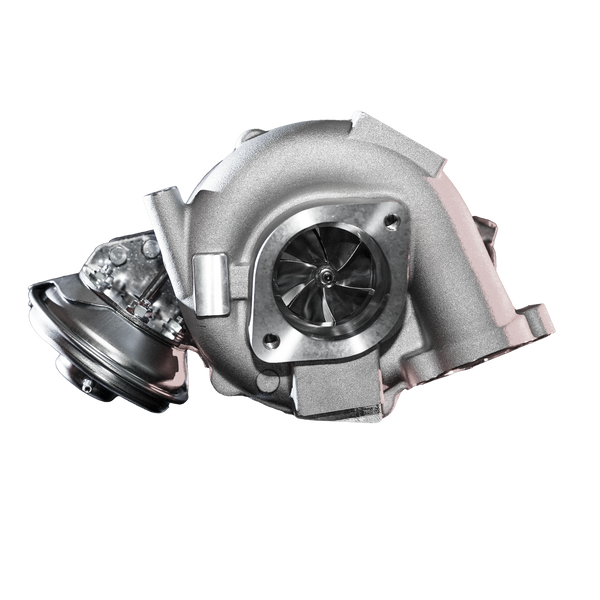

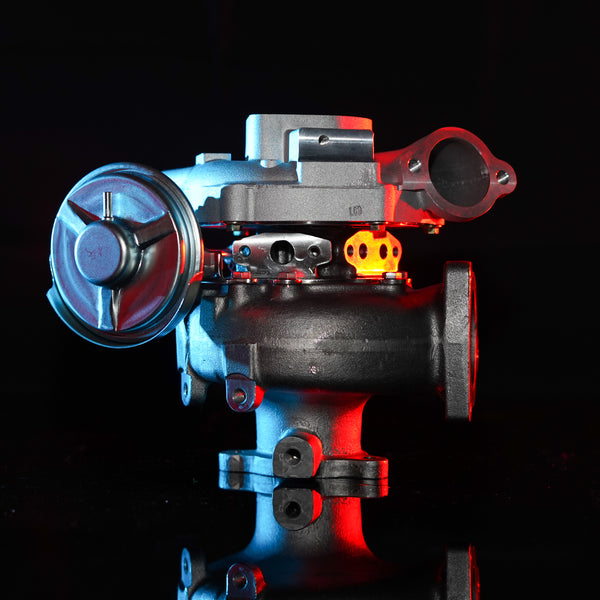

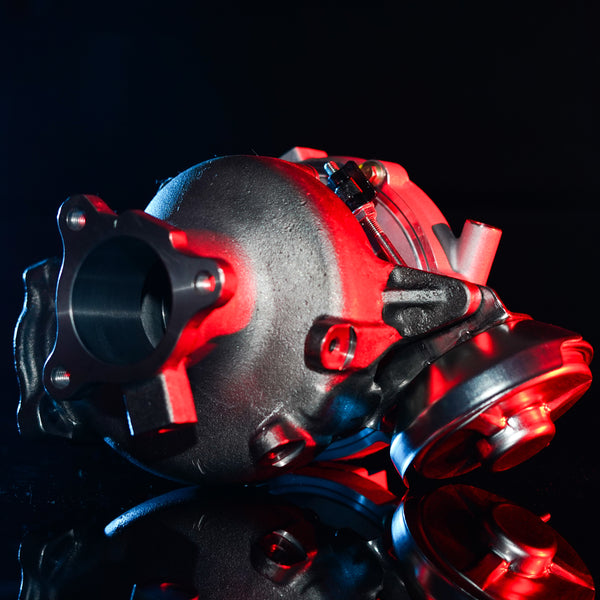

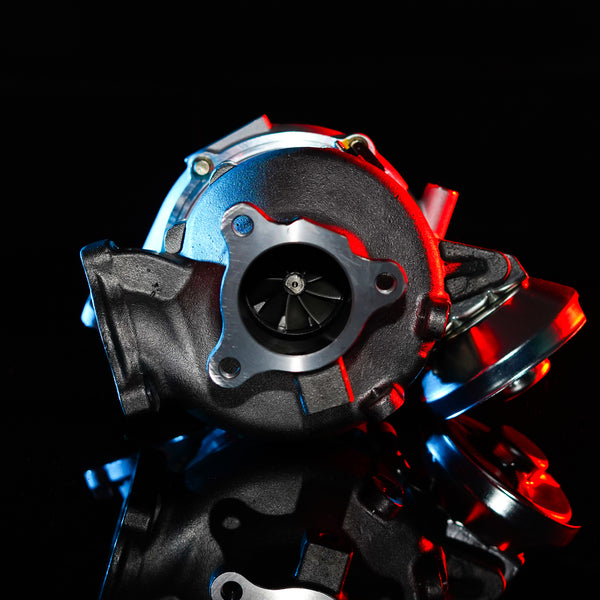

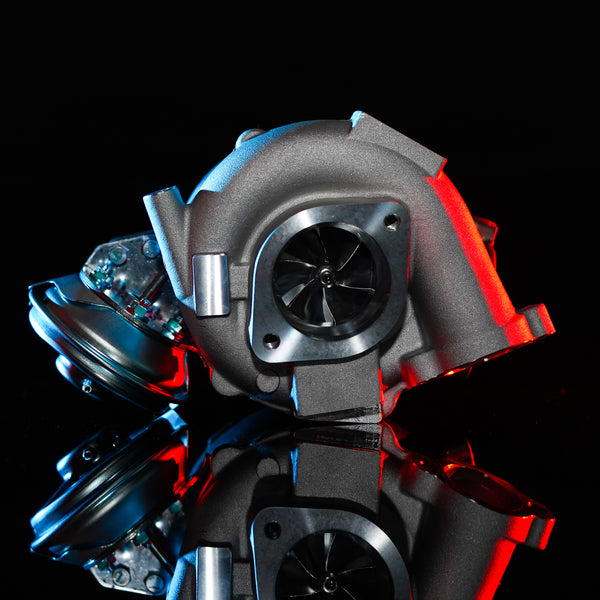

Spartan Turbocharger Systems (S.T.S.) have specially made these turbochargers to help Landcruiser 70 Series owners!
To have a turbocharger that can make big HP and stay reliable at the same time is always the dream!
S.T.S. spec these units out with the best of the best parts!
They are designed to make up to 30PSI reliably, yet they also lower EGTs, EMP & drive better than your factory 1VD turbo!
Through vigorous testing they can comfortably say that these units make up to 300HP/850NM. (Dependent on vehicle set up & tuner)
Features:
- Boost rating 16PSI - 26PSI
- 49mm 6+6 blade billet aluminium compressor wheel
- 9 Blade inconel hybrid turbine wheel
- Custom heavy duty bearing
- Oil & coolant cooled core
- Designed specifically for the 1VD engine
- Direct install, no modification required
- Pre-calibrated vacuum actuator
Specs:
| Compressor |
Turbine |
Core |
| Inlet: 3 Inch | Inlet: Factory Flange | Lubrication: Oil |
| Outlet: Factory Size | Outlet: Factory flange | Coolant: Yes |
| Wheel: 49mm 6+6 Billet Aluminium | Wheel: 9 Blade Inconel Hybrid | Oil Fittings: Factory |
| Size: Factory AR.61 | Size: Factory AR.64 | Coolant Fittings: Factory |
Fitting Notes:
The 775095-STS is a 100% direct fit to your Toyota Landcruiser 70 Series with 1VD engine.
You will require a 3 Inch exhaust system, upgraded intercooler, airbox, intake and cooler pipes, upgraded 30% larger injector nozzles & a custom ECU tune.
(A copy and paste tunes wont work on these turbos, please also ensure that the tuner is familiar with 70 Series vehicles)
Brand: Spartan Turbocharger Systems (S.T.S.)
Model: 775095-STS
Part No: 775095-5001S / 775095-0001 / 769686-0001 / 775095-0001 / 769686-5001S / 775095-1 / 769686-1
OEM Part No: 1720151010C / 17201-51010C / 1720151010 / 17201-51010 / 1720151010A / 17201-51010A / 1720151010B / 17201-51010B / 1720151010D / 17201-51010D
Vehicles:
- Toyota Landcruiser VDJ76 4.5L 1VD-FTV 03/2007 - 2016
- Toyota Landcruiser VDJ78 4.5L 1VD-FTV 03/2007 - 2016
- Toyota Landcruiser VDJ79 4.5L 1VD-FTV 03/2007 - 2016
Cooling: Oil & coolant
Gaskets: This turbo comes with a free complete gasket kit.
Warranty: 12 Months/25,000km - Whichever comes first
Delivery: Free post to Aus wide, normally takes 2-4 days to major cities.
